Authorised DealerRippa R15 Mini Excavator
The Rippa R15 ECO sits in the sweet spot of the mini excavator range — more capable than entry-level machines, yet compact enough for most residential and commercial access points. Powered by an imported Kubota D722 three-cylinder water-cooled diesel engine producing 13.7 hp, it pairs with 3 fixed displacement piston pump hydraulic system and 9-way pilot valve for smooth, precise control that even operators with minimal experience can get to grips with quickly. Pilot-operated joysticks require 30% less effort than mechanical linkages, reducing fatigue on long shifts. The body width of just 0.99 m and short-tail swing design means it manoeuvres comfortably in confined gardens and urban sites. Hydraulically adjustable tracks allow the gauge to be widened for stability or narrowed for tight passages. A standard 0.04 m³ bucket and compatibility with 20+ attachments — including hydraulic breakers, spiral drills and grading blades — make the R15 one of the most versatile machines in its class. CE, EPA and Euro V certified. The piston is located on the top of the boom, giving extra digging depth compared to other models of the same size. This top-mounted piston reduces the risk of crushing damage and dirt ingress during excavation, meaning fewer repairs and longer service intervals. The pistons on the boom and stick are further protected by steel plates, and hydraulic hoses are routed internally through the boom — shielding them from crushing damage compared to machines with externally routed hoses.
Full Specifications

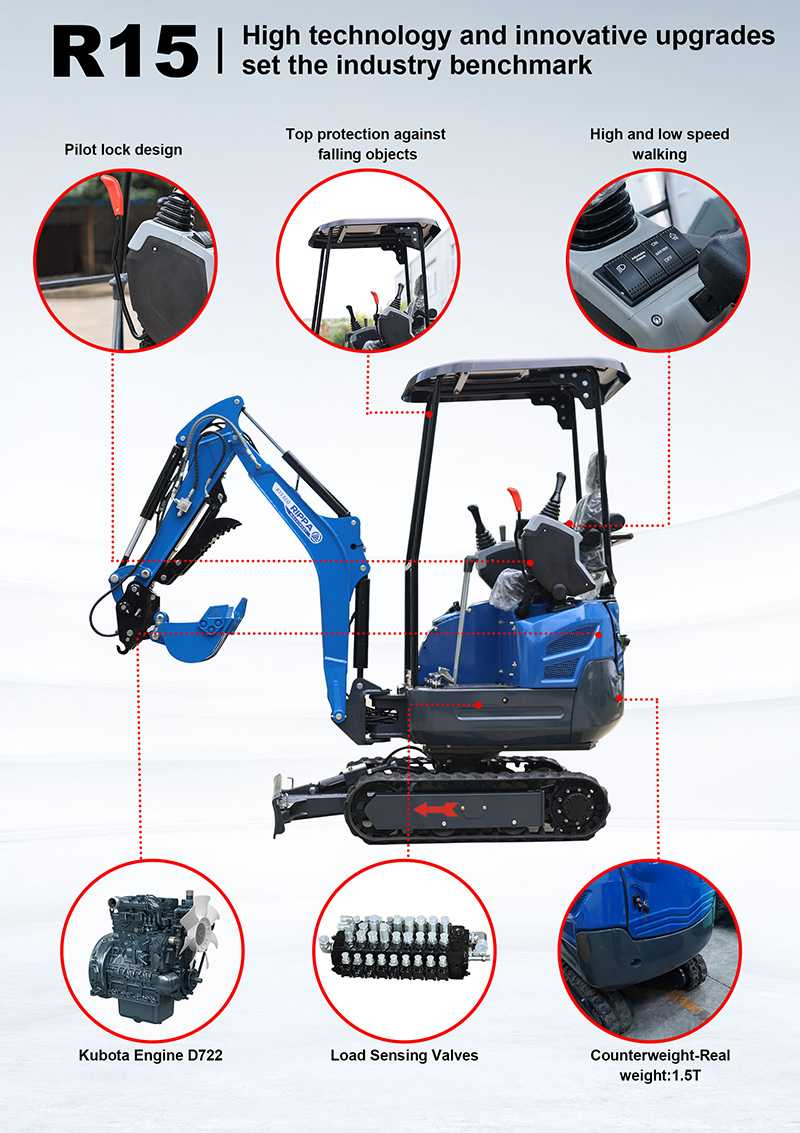

Key Features
- Kubota D722 3-cylinder water-cooled diesel — 13.7 hp, imported engine
- Pilot-operated joysticks — 30% less effort than mechanical, reduced fatigue
- Gear pump x3 hydraulic system for smooth, precise control
- Hydraulically adjustable tracks — widen for stability, narrow for tight access
- 0.99 m body width and short-tail swing for confined sites

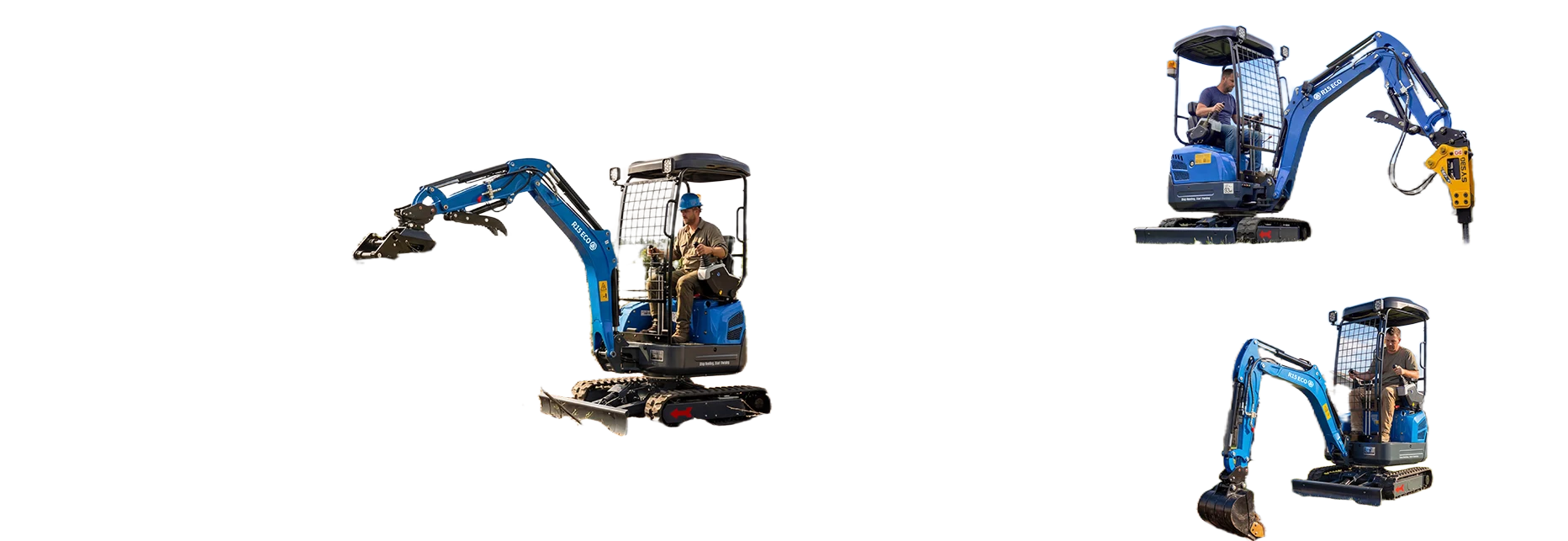

- Compatible with 20+ attachments: breakers, drills, grading blades and more
- LCD display with real-time machine status and fault codes

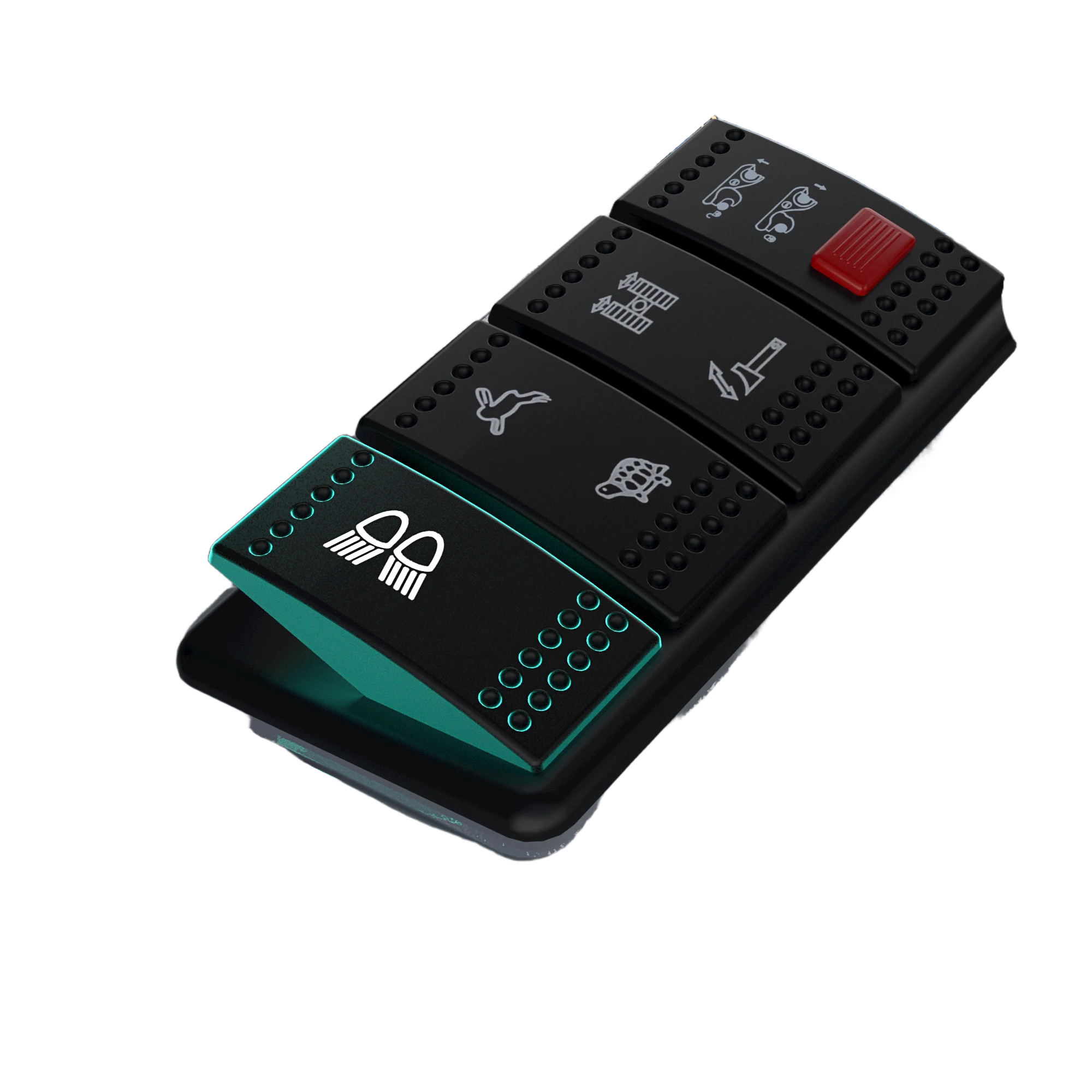

- ISO/SAE pattern selector — choose whichever control logic suits the operator
- Low ground pressure (≤35 kPa) — minimal surface damage on soft ground
- CE, EPA and Euro V certified with full after-sales support
- Boom-top piston design delivers extra dig depth compared to similarly-sized models
- Top-mounted boom piston reduces risk of crushing damage and dirt ingress — fewer repairs, longer service intervals
- Boom and stick pistons shielded by protective plates to guard against dirt and impact during work

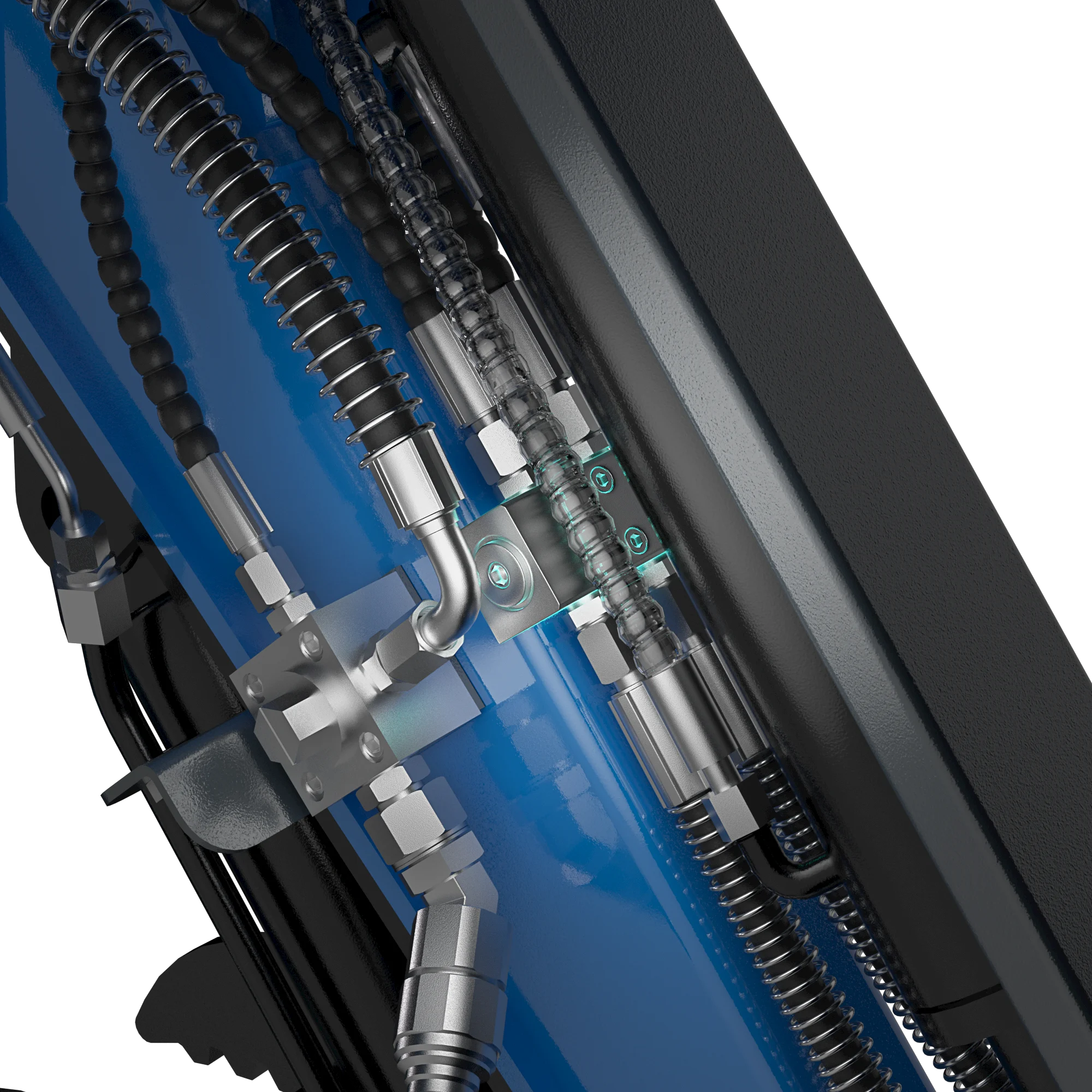

- Hydraulic hoses routed internally through the boom for superior protection against crushing damage versus external-hose designs
